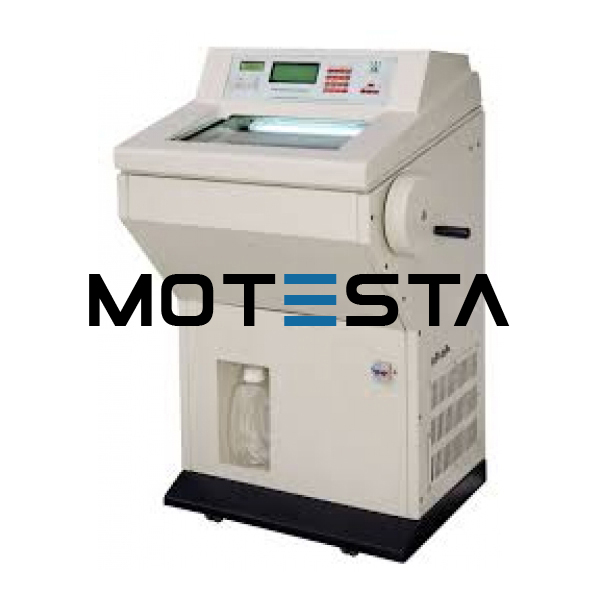

Cryostat

Specifications:

·       Open top, heated sliding window, corrosion proof, stainless steel cryo chamber with good Fluorescent illumination.

·       Cooling via two separate refrigeration system.

·       Temp. of cryo chamber should be at least -30° c Facility for integrated peltier quick specimen freezing up to -45° C. Separate cooling should be adjustable up to -50 °C.

·       Temperature of the cryo chamber should be maintained within ± 2° C of set temperature and maintained by hermetically sealed compressor system.

·       Automatic programmable defrosting and manual defrosting should also be possible.

·       Fully motorized microtome – movement controlled by manual as well as foot switch.

·       Microtome should be encapsulated to support efficient spray disinfection

·       Space for other specimen rack minimum 6 blocks. Removable section waste tray.

·       Section thickness setting must be outside the cryo chamber.

·       Disposable blade holder for low and high profile blades and Knife holder which can hold minimum 16 cm C type knife.

·       Specimen holder can hold specimen size up to 70 x 50mm.Facility for both 360° rotation as well as movement in X Y axis. Section thickness cutting 1-60 micro meter.

·       Specimen retraction around 50 micron.

·       Trimming in steps from 5 to 150 Microns

·       Motorized coarse speed 500 micro meter /sec & 1000 micro meter / sec

·       Control for number of sections.

·       Cryo cabinet should be of appropriate size.

Voltage - 220 -240 V, 50 Hz

Motesta Instruments is one of India's most trusted Civil & Mechanical Engineering Lab Equipment Manufacturers for bulk tender supply of Cryostat. We deliver against Ministry of Education tenders, World Bank funded projects, ITI/Polytechnic supply contracts and turnkey lab setup orders for Engineering Colleges and Universities worldwide.

For tender quotations on Cryostat (Code: EML0333), our tender desk provides:

• Detailed Technical Specifications matched line-by-line to your tender BOQ
• OEM Authorization Letters and ISO/CE compliance certificates
• EMD & Bank Guarantee support documentation
• Custom branding on labels & control panels for institute identity
• Voltage variants (110V/220V/three-phase) for the destination country
• Multi-language documentation (English, French, Spanish, Arabic on request)
• Container loading photos and pre-shipment inspection reports

Read more about MoE Tender Supply
